Bopp & Reuther Messtechnik GmbH
Booth number: 13390
www.bopp-reuther.com
About us
Bopp & Reuther Messtechnik GmbH is your expert for high-precision flow metering, density and concentration measurements.
We offer our partners custom-fit solutions for the precise control of your industrial processes, even under the most difficult environmental conditions. For us, "Made in Germany" stands for precision, competence and innovation in the interest of our customers.
Flow meters like oval wheel meters, turbine meters, Coriolis mass flow meters, electromagnetic flow meter, density / concentration meters, flow computers, accessories, complete solutions acc. to the MID 2014/32/EU
Address
Am Neuen Rheinhafen 4
67346 Speyer
Germany
E-mail: info@bopp-reuther.com
Phone: +49 6232 657-0
Internet: www.bopp-reuther.com
Contact person:
Gabriele Banfi
E-mail: g.banfi@bopp-reuther.com
Phone: +39 328 4678818
Akshaya Maya Nath
E-mail: a.nath@bopp-reuther.com
Phone: +49 160 3336397
Products & Services
Oval Wheel Meter (PD-Meter)
Turbine Meter
Density and Concentration Meter
Flow Computer
Metering Skids
Services and Calibration

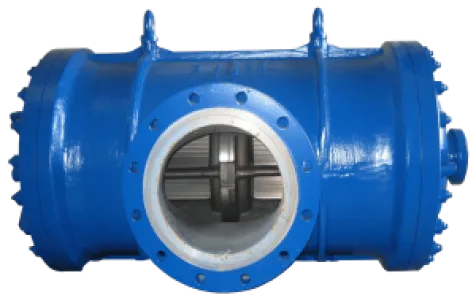

Oval Wheel Meter Series OaP
This type of PD-Meter is used for measuring liquid raw, intermediate and finished products such as liquefied gases, gasolines, heating oils, lubricating oils, transmission oils, solvents, bitumen, alkaline solutions, acids and other chemical liquids

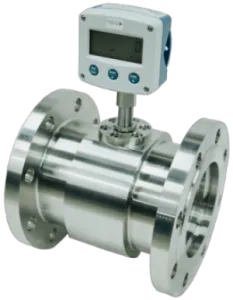

Turbine Meter
The turbine Meter is used for flow and volume measurement of liquid such as crude oil, mineral oil, acids, alkaline solutions, solvents, water, liquefied gases, refined oil products (gasoline, kerosene, jet A1, JPB, diesel), vinyl chloride

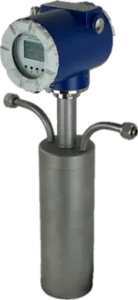

Density and Concentration Meter
The liquid density sensor of the DIMF series is used for continuous measurement of the density / concentration of almost all pumpable non-aggressive liquids or liquid mixtures especially hydrocarbons. The proven tuning fork principle guarantees a high measuring accuracy with very good long-term stability. The robust design ensures reliable operation even under harsh operating conditions.
Flow Computer
The UR-06 is used for the acquisition, display and output of mass and volume flows, including the calculation of net values for standard conditions. The integrated batch function allows the UR06 to acquire batches via external signals and store them in the original document memory. Plug-in modules allow the connection of different sensor systems for the acquisition of mass flow, pressure, temperature or density.
The Flow Computer Series UR06-Ex d is used for flow measurements and quantity measurement of liquids in custody transfer for example the continuous measurement with temperature and pressure compensation of 2 meters simultaneously, mass counting in combination with a density meter, consumption measurement, addition of 2 sections and batch function via a higher-level control system, electronic storage of original documents integrated.

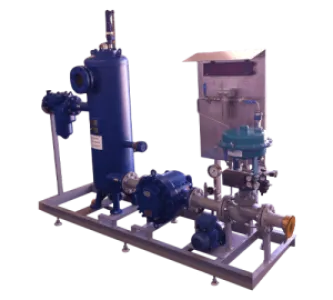

Metering Skids
As a complete solution provider, we cover all needs, from consulting, engineering, manufacturing, testing, at Site installation and implementation of Compact Metering /Proving Systems based on our own components and technologies for:
Batch Measurement: Loading / Unloading
Continuous Measurement: Pipeline
Blending and Additive Injection Units
Dosing
Services and Calibration
As a competent partner in the field of flow measurement technology, we have been working for numerous companies from various branches of industry for decades. The quality of the products and the satisfaction of our customers play the main role for us.
No wonder that for us an excellent service with numerous downstream services is at least as important as the product itself.
Decontamination according to VCI guidelines
Diagnosis / Repaier / Assembly
Calibrations
Commissioning
Complete solutions according to European Measuring Instruments Directive (MID)
