About us
KAMAT GmbH & Co. KG: High-Pressure Plunger Pumps up to 4,000 bar
KAMAT has been manufacturing high-pressure plunger pumps and complete pump units in Witten, Germany, since 1974. The modular range of triplex and quintuplex pumps covers 15 kW to 3,000 kW, pressures up to 4,000 bar and flow rates up to 10,000 l/min, available to API 674, in ATEX design and in vertical installation for compact skids.
For oil and gas, KAMAT supplies units for hydrostatic pressure testing of pipelines and components, water and chemical injection, well service, and turnaround services such as heat exchanger and tank cleaning. Pump heads are forged in one piece without coatings, in stainless or duplex steel for seawater and corrosive media; ceramic plungers handle abrasive fluids. Seals are replaced without removing the pump head, without cranes or special tools. Mobile KAMJET units are available as trailer, skid or containerised version with diesel or electric drive; automatic versions save up to 30 percent diesel. KAMAT also builds high-pressure systems for hydrogen testing and for new fuels such as methanol and ammonia.
Service and spare parts in the Gulf region are provided through local KAMAT partners. Made in Germany.
Address
Salinger Feld 10
58454 Witten
Germany
E-mail: sales@kamat.de
Phone: +49 2302 89030
Internet: www.kamat.de
Contact person:
Products & Services
KAMAT: High-Pressure Solutions for the Energy Sector
KAMAT designs and manufactures high-pressure plunger pumps, pump units and accessories for industrial applications up to 4,000 bar and 3,000 kW. The modular system allows each pump to be configured for its duty, with engineering to API 674 on request, and all units are built for maintenance in the field: seals are replaced without removing the pump head, without cranes or special tools.
The triplex and quintuplex plunger pumps cover drive powers from 15 kW to 3,000 kW, pressures up to 4,000 bar and flow rates up to 10,000 l/min (600 m³/h). Pump heads are forged in one piece without coatings, in stainless or duplex steel for seawater and corrosive media; ceramic plungers handle abrasive fluids. Horizontal or vertical installation, diesel or electric drive, ATEX design and ambient temperatures up to 50 °C are covered by the standard range, onshore and offshore.
Our solutions for the energy sector:
Hydrostatic pressure testing of pipelines, vessels and components, from single pumps to multi-unit test systems with continuous flow control
Water and chemical injection, including methanol injection, to API 674 on request
Turnaround services: heat exchanger, tank and pipeline cleaning, descaling and coating removal with mobile KAMJET units up to 4,000 bar
High-pressure systems for hydrogen testing and for new fuels such as methanol and ammonia, as well as LNG and CCUS processes
Turnkey units and skids with instrumentation, automation and safety integration, as trailer, baseframe or containerised version
Key advantages:
Modular system: one pump family from 15 kW to 3,000 kW, spare parts shared across the range
Field maintenance without cranes or special tools, short downtimes during turnarounds
One-piece forged pump heads without coatings, stainless or duplex steel, for long service life with corrosive media
Automatic KAMJET versions adjust engine power and flow to the load and save up to 30 percent diesel
Service and spare parts in the Gulf region through local KAMAT partners, engineering and manufacturing in Witten, Germany
KAMAT has been supplying energy producers, EPCs, OEMs and service contractors since 1974. Family-owned, Made in Germany.

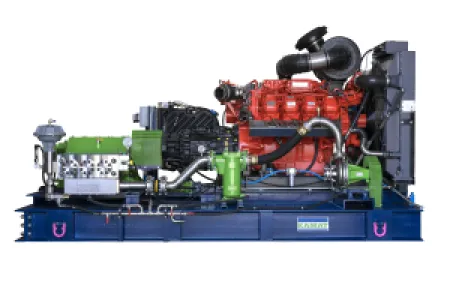

KAMJET Diesel High-Pressure Unit
The turnkey KAMAT KAMJET diesel unit combines a robust high-pressure plunger pump with a Stage V Volvo diesel engine, delivering up to 3,500 bar (technically 4,000 bar capable) and 522 l/min flow, housed in a sound-insulated trailer, baseframe, or container for flexible deployment. Designed for critical tasks in LNG, hydrogen, CCUS, pipeline cleaning, and pressure testing, it features automatic pressure and flow control, remote operation, GPS tracking, and ATEX options . With intelligent engine management reducing fuel use by up to 30%, and full in-house integration for plug-and-play functionality, the KAMJET is a reliable, low-emission high-pressure solution tailored for energy and process industries
Mobile High-Pressure Power – Anywhere. Anytime. Powerful. Mobile. Tailored. The KAMAT diesel-driven high-pressure unit K45036A2-3G-DW478C offers maximum performance in a compact, containerized design. Engineered for remote industrial environments, it ensures reliable operation, easy service, and full compliance with global emission standards – all made in Germany.
KAMAT Quintuplex Plunger Pump K55000‑5G
The K55000‑5G is KAMAT’s high-end quintuplex plunger pump, engineered to deliver exceptional power and precision in energy and industrial applications. Driven by a 550 kW five-cylinder unit, it achieves up to 3,500 bar pressure and 1,913 L/min flow—all without booster.
Designed for tough environments, the five-cylinder configuration eliminates cavitation and delivers ultra-smooth discharge—ideal for large-scale jetting, pipeline cleaning, descaling, and mining operations. State-of-the-art gear systems are dynamically balanced, force-fed lubricated, and oil-cooled for continuous, reliable.
Industry-ready and compliant, the K55000‑5G aligns with API 674 standards and supports operation with challenging media (e.g., seawater, glycol, methanol, oils), plus ATEX configurations upon request.
KAMAT 3500 LV – High-Performance Rotating Nozzle
The KAMAT 3500 LV rotating nozzle is engineered for powerful and efficient surface cleaning at pressures up to 3,500 bar. Its robust, maintenance-friendly design enables consistent high-impact cleaning performance even under the harshest industrial conditions. Thanks to the ceramic bearing and precision-balanced rotation, it delivers optimal cleaning with minimal wear – ideal for tanks, walls, or pipelines.

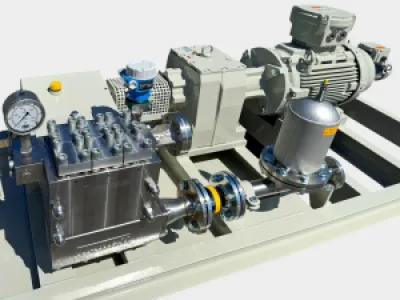

High-Pressure Methanol Injection Units for Offshore Oil & Gas
KAMAT's methanol injection units are designed for high-performance operation in offshore oil & gas environments. Fully compliant with API674 and certified for ATEX Zone 1, the systems operate reliably at ambient temperatures up to 45 °C and fluid temperatures up to 80 °C. The corrosion-resistant construction uses Duplex and high-grade stainless steel, ideal for marine exposure. Each compact skid-mounted unit integrates a KAMAT high-pressure pump, precision gear reducer, 18 kW electric motor, and a suction flow stabilizer for cavitation-free, long-life performance.
Performance Highlights:
• Maximum pressure: 285 bar
• Flow range: 0.27 – 2.00 m³/h
• Control ratio: 1:8 – no oil-pressure lubrication required
• Compact design for space-constrained installations
High-Pressure Pumps Engineered for the Energy Sector
KAMAT’s modular high-pressure plunger pumps are engineered to meet the demanding requirements of the oil, gas, and energy industries. Designed for durability and flexibility, the pump systems offer pressure levels up to 3,500 bar and flow rates exceeding 4,000 l/min – ideal for applications such as methanol injection, pipeline cleaning, descaling, pressure testing, and water hydraulics.
Built to API 674 standards and available with ATEX Zone certifications, all pumps feature stainless steel or Duplex materials for superior corrosion resistance in harsh environments. The standardized internal components across the pump series ensure simplified maintenance, reduced spare part logistics, and minimized downtime. Available as triplex or quintuplex configurations, with horizontal or vertical installation options, these pumps can be tailored precisely to each operational need – whether offshore, onshore, or in extreme temperature zones.
Key Features:
• API 674 & ATEX-compliant
• Pressure range: up to 3,500 bar
• Flow range: up to 4,000 l/min (240 m³/h)
• VFD-capable with wide control range (up to 1:10)
• Compact, service-friendly design – Made in Germany

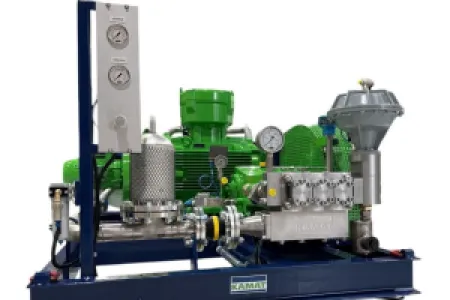

High-Precision Injection Pump System for Methanol Testing
This high-pressure pump system is specifically designed for methanol injection testing under variable load and pressure conditions. With a flow range from <2 l/min to 20 l/min at a constant 1,000 bar, it ensures stable and repeatable performance for research and development purposes. The unit features an ATEX Zone 1 certification, a TA-Luft-compliant seal system with leakage detection, and an external oil pressure supply for dynamic flow control. A magnetically coupled pre-feed pump and a custom suction line with integrated filter and flow stabilizer ensure safe, precise, and cavitation-free operation with aggressive media like methanol.
High-Pressure Test Unit
High-pressure test system for the reliable hydrostatic testing of pipelines and components at pressures of up to 4,000 bar. It features a KAMAT high-pressure pump, precise control and safety instrumentation, as well as optional ATEX compliance. It is ideal for validating pressure resistance and functional performance in industrial and energy applications.
